Before you can add a SentinelNOW button in the app, it’s essential that the SentinelNOW gateway is installed and fully configured. The gateway serves as the communication bridge between the button and your Deep Sentinel hub. Without a properly set up gateway, the button will not function or appear in the app for onboarding.
If you haven’t yet completed the gateway setup, please follow the instructions in our companion guide:
👉 SentinelNOW Gateway Setup and Troubleshooting
Once your gateway is connected to the same network as your hub and assigned a static IP address, you can proceed with adding the button in the app as outlined below.
Step-by-Step Instructions
-

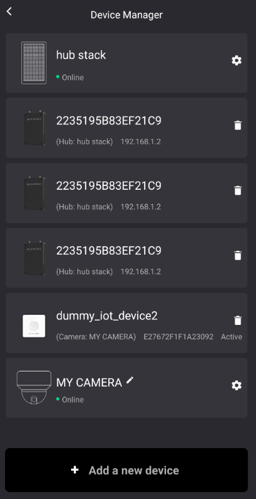

Log in to the Deep Sentinel app and go to Settings > Device Manager.
-
Tap Add a new device.
-

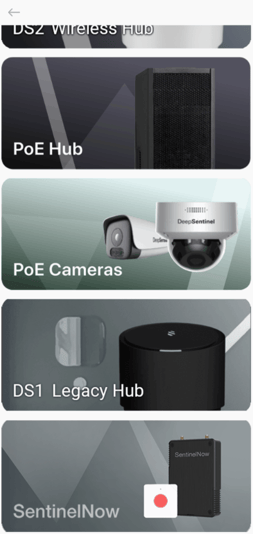

Select SentinelNOW from the list.
-
Select SentinelNow Gateway as your device.
-
Tap Next.
-

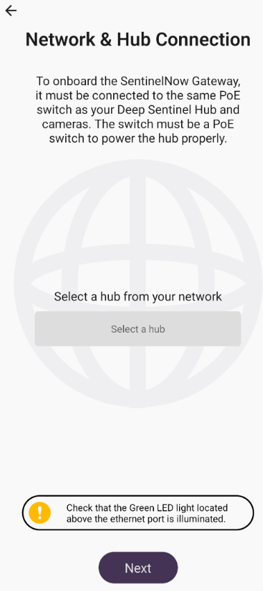

Tap Select a Hub, then tap the hub you want to add the gateway to.
-
Tap Next.
-

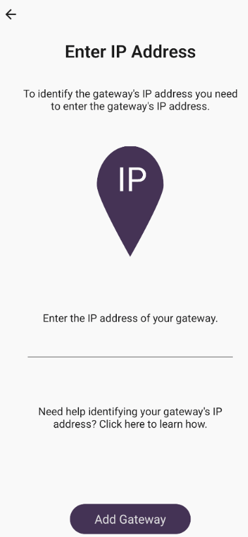

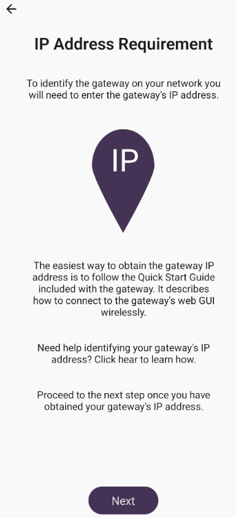

Enter the IP address of the gateway.
-
Tap Add Gateway and wait for the device to connect. (note: you may need to connect your phone to the same WiFi as the hub's local network for this step to succeed.)
-

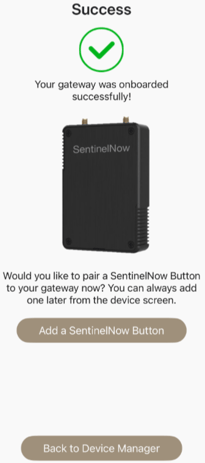

Tap Add a SentinelNOW Button.
-

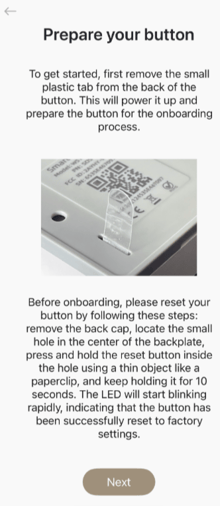

Remove the back cover of the button.
-
Using a thin object like a paperclip, press and hold the reset button for 10 seconds until the LED begins blinking rapidly.
- Replace the back cover of the cover.
-
Tap Next.
-

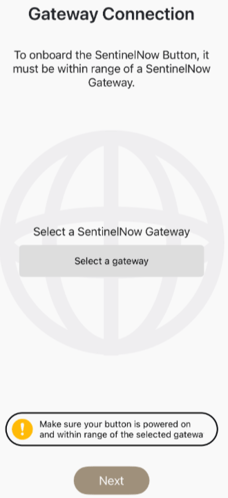

Tap Select a Gateway, then tap your gateway (identified by its IP address).
-
Tap Next.
-

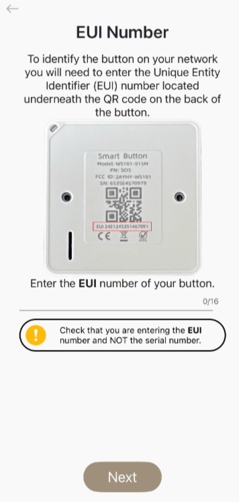

Enter the EUI printed on the back of the button.
-
Tap Next.
-

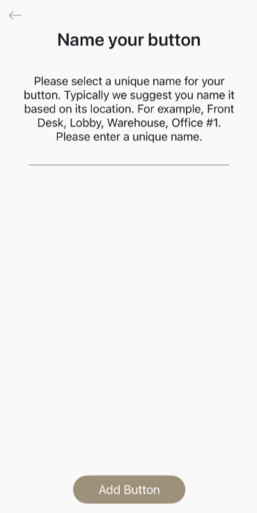

In the text box, type a name for the button.
-

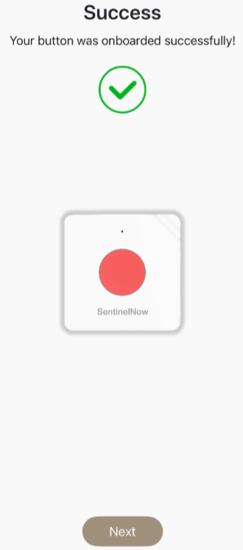

Tap Add Button and wait for the button to connect.
-

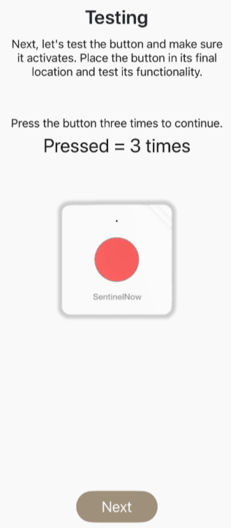

Tap Next to test button range.
-
Move the button in its final location and ensure the cover is installed.
-
Press the button three times and watch the app for confirmation.
-
After testing, tap Next.
-

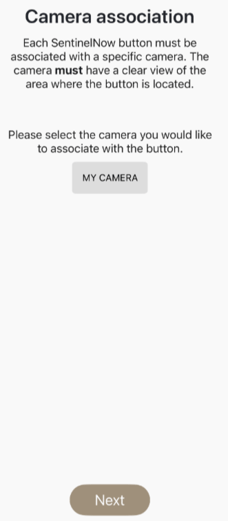

Tap Select a Camera, then choose a camera that has a clear view of the button's location.
-
Tap Next.
-

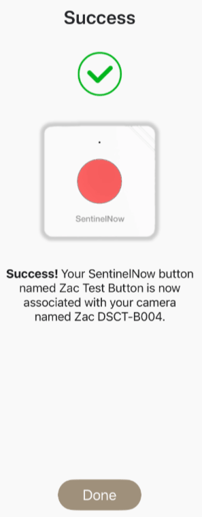

Tap Done to finish setup.
